Configuring Nagios Alerts on Debian 10 and Ubuntu 20.04

Nagios, a popular tool for monitoring servers, comes with a robust web interface to help you effectively manage your server. Its dashboard makes it relatively easy to check in on the hosts and services running on your machine and quickly learn of any issues.

However, you can get even more out of Nagios by setting it up to deliver alerts and notifications when you need them. This guide provides instructions for setting up email alerts from Nagios and configuring regular status updates via Internet Relay Chat (IRC).

Before You Begin

1. Familiarize yourself with our Getting Started with Linode guide, and complete the steps for setting your Linode’s hostname and timezone.

2. This guide uses sudo wherever possible. Complete the sections of our article on How to Secure Your Server to create a standard user account, harden SSH access, and remove unnecessary network services.

3. Install and configure Nagios. Follow the steps in the Install Nagios on Debian 10 and Ubuntu 20.04 guide. Alternatively, the official Nagios Installation Guide provides steps for installing Nagios from source code on a wide range of Linux distributions.

4. Update your system:

    sudo apt update && sudo apt upgrade


5. Replace example.com throughout this guide with your machine’s domain name, and replace fqdn.example.com with your machine’s fully qualified domain name (FQDN).

Note

This guide is written for non-root users. Commands that require elevated privileges are prefixed with sudo. If you’re not familiar with the sudo command, see the Linux Users and Groups guide.

Set Up Nagios Email Alerts

Note About Email at Linode

This guide may involve or result in sending email. In an effort to fight spam, Linode restricts outbound connections on ports 25, 465, and 587 on all Linodes for new accounts created after November 5th, 2019. For more information, please see Sending Email on Linode.

This guide may involve or result in sending email. In an effort to fight spam, Linode restricts …

Note

This guide also provides instructions for configuring local emails, which are not subject to the above restriction. Under this configuration, emails are only delivered to users on the same machine as Nagios.

Install Email Services

1. Install packages for handling emails.

    sudo apt install mailutils postfix


   • You should be prompted for information about your mail server configuration. If you are not or if you need to re-enter the information, you can run the following command after the installation has finished:

     sudo dpkg-reconfigure postfix

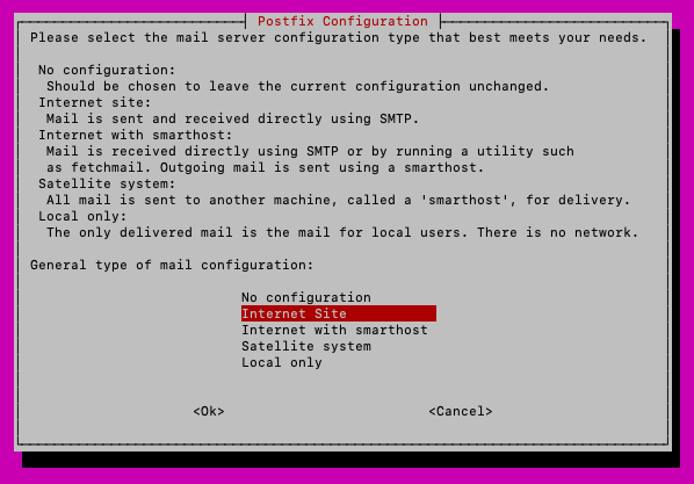

   • Select Internet Site from the options that appear.

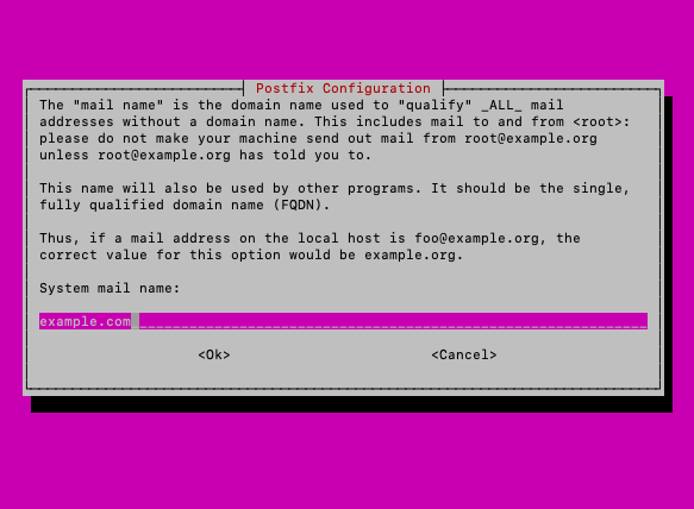

   • Enter the domain name to be used for your email addresses. This may be either your machine’s fully qualified domain name (FQDN) or base domain name. It can be localhost if you are configuring Postfix for local emails only.

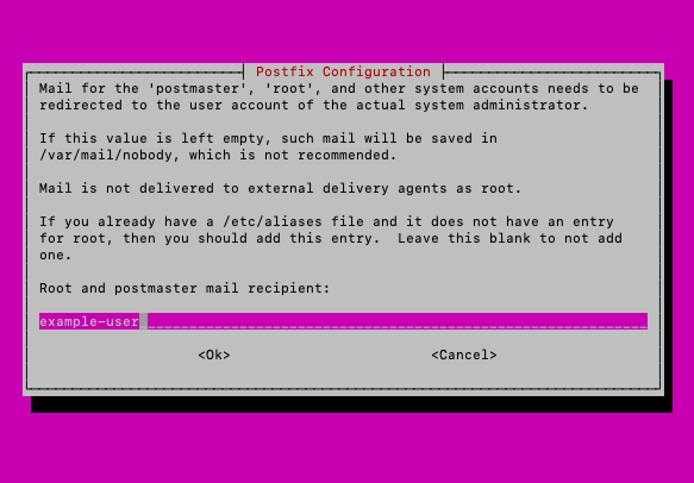

   • Provide the username of your primary user on the machine.

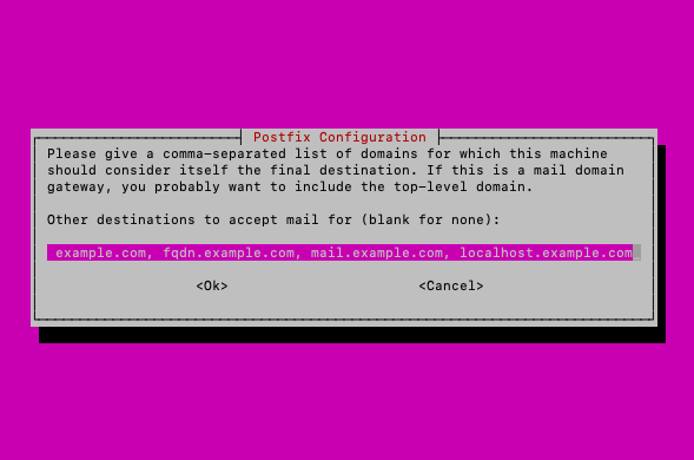

   • When prompted for destinations for which to accept mail, you can leave the field blank to only accept emails directed to the system mail name. If you have a domain name configured and want to ensure that emails are accepted for a wider range of domains, you can enter the following: localhost, example.com, fqdn.example.com, mail.example.com, localhost.example.com.



   • Use the default values for the remaining steps:

     • Choose No to synchronous updates
     • Enter 127.0.0.0/8 [::ffff:127.0.0.0]/104 [::1]/128 for local network
     • 0 for the mailbox limit
     • + for the local inbox extension character
     • Select all for the Internet protocols

   • Alternatively, you can follow the Configure Postfix to Send Email Using External SMTP Servers or the Configure Postfix to Send Mail Using Gmail and Google Apps on Debian or Ubuntu guide. Doing so sets up Postfix to send emails via an external SMTP provider or a Gmail account, respectively.

2. Test the email configuration with the following command below; replace example-user with the username of a local user that you can log in as.

    echo "Body of the test email." | mail -s "Test Email" example-user@localhost


   • Log in as example-user, and run the mail command. Verify that the user received the test email.

   • You can use a similar command to the one above to test outbound emails. Replace example-user@localhost with an external email address to which you have access.

Configure Nagios

1. Using your preferred text editor, open the Nagios commands configuration file, located at /etc/nagios4/objects/commands.cfg. Identify the command definitions for notify-host-by-email and notify-service-by-email. For each, verify that the location of the mail binary is /usr/bin/mail, as in the following example:

   File: /etc/nagios4/objects/commands.cfg

   1 2 3 4 5 6 7 8 9 10 11 12 13 14

   # 'notify-host-by-email' command definition define command{ command_name notify-host-by-email command_line /usr/bin/printf "%b" "***** Nagios *****\n\nNotification Type: $NOTIFICATIONTYPE$\nHost: $HOSTNAME$\nState: $HOSTSTATE$\nAddress: $HOSTADDRESS$\nInfo: $HOSTOUTPUT$\n\nDate/Time: $LONGDATETIME$\n" | /usr/bin/mail -s "** $NOTIFICATIONTYPE$ Host Alert: $HOSTNAME$ is $HOSTSTATE$ **" $CONTACTEMAIL$ } # 'notify-service-by-email' command definition define command{ command_name notify-service-by-email command_line /usr/bin/printf "%b" "***** Nagios *****\n\nNotification Type: $NOTIFICATIONTYPE$\n\nService: $SERVICEDESC$\nHost: $HOSTALIAS$\nAddress: $HOSTADDRESS$\nState: $SERVICESTATE$\n\nDate/Time: $LONGDATETIME$\n\nAdditional Info:\n\n$SERVICEOUTPUT$\n" | /usr/bin/mail -s "** $NOTIFICATIONTYPE$ Service Alert: $HOSTALIAS$/$SERVICEDESC$ is $SERVICESTATE$ **" $CONTACTEMAIL$ }

2. Open the Nagios contacts.cfg configuration file, located at /etc/nagios4/objects/contacts.cfg. Identify the nagiosadmin contact definition. In the email field, enter the email address where you would like to receive Nagios notifications.

   You can configure Nagios to send notifications to a local mailbox using example-user@localhost, where example-user is the local user you want to receive Nagios alerts.

3. Open the Nagios templates.cfg configuration file, located at /etc/nagios/objects/templates.cfg. Find the generic-host definition, and ensure that it has the following line:

   File: /etc/nagios4/objects/templates.cfg

   1 2	contact_groups admins

   Similarly, find the generic-service definition, and ensure that the same line is present.

4. Restart the Nagios service.

    sudo systemctl restart nagios4


Test Nagios Email Alerts

You can use the following steps to verify that Nagios is delivering alerts by email.

1. In a web browser, navigate to your Nagios interface, and log in as the nagiosadmin user.

2. Select Services from the menu on the left, and select any of the services for which notifications are not disabled.

3. Choose the Send custom service notification option from the Service Commands menu on the right. Enter a comment, and select Commit.

4. Check the email inbox that you configured Nagios to send notifications to, and verify that you received your custom notification.

   If your Nagios alerts are sent to a local user, log in as that user, and use the mail command to check the user’s inbox.

Set Up Nagios IRC Alerts

This guide uses NagIRCBot, an application designed to routinely read Nagios’s status information and post updates to an Internet Relay Chat (IRC) channel.

Build and Install NagIRCBot

1. Install the requisites for building NagIRCBot.

    sudo apt-get install -y autoconf gcc libc6 libmcrypt-dev make libssl-dev wget bc gawk dc build-essential snmp libnet-snmp-perl gettext


2. Navigate to the NagIRCBot Exchange directory. Replace the version number in the following examples with the version you find.

3. In the /opt directory, download the package containing the files needed to build the bot; extract the files, and change them into the resulting directory.

    cd /opt
    sudo wget https://launchpad.net/ubuntu/+archive/primary/+sourcefiles/nagircbot/0.0.33-2/nagircbot_0.0.33.orig.tar.gz
    sudo tar -zxvf nagircbot_0.0.33.orig.tar.gz
    cd nagircbot-0.0.33
    sudo make
    sudo make install
    sudo cp nagircbot /usr/local/bin


4. Build the NagIRCBot application.

    sudo make
    sudo make install


Run and Test NagIRCBot

1. Use a version of the following command to start NagIRCBot.

    sudo nagircbot -f /var/lib/nagios4/status.dat -s irc.example.com:6667 -c \#example-channel -C -n nagircbot -u nagircbot-username -U NagIRCBot-Name -I 900


   Replace irc.example.com with the hostname of the IRC network or localhost for a local IRC network. Replace nagircbot, nagircbot-username, and NagIRCBot-Name with the nickname, username, and real name, respectively, to be used for the bot. Change the 900 as needed; it defines how frequently, in seconds, the bot checks and sends Nagios status information.

2. Connect to the IRC channel, and verify that you are receiving status updates at the expected interval.

3. By default, NagIRCBot must be re-initiated using the command described above after each system reboot. Refer to the Use systemd to Start a Linux Service at Boot or the Schedule Tasks with Cron guide for instructions on how to schedule tasks to run automatically.

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

• Nagios
• Nagios Installation Guide
